Product Details

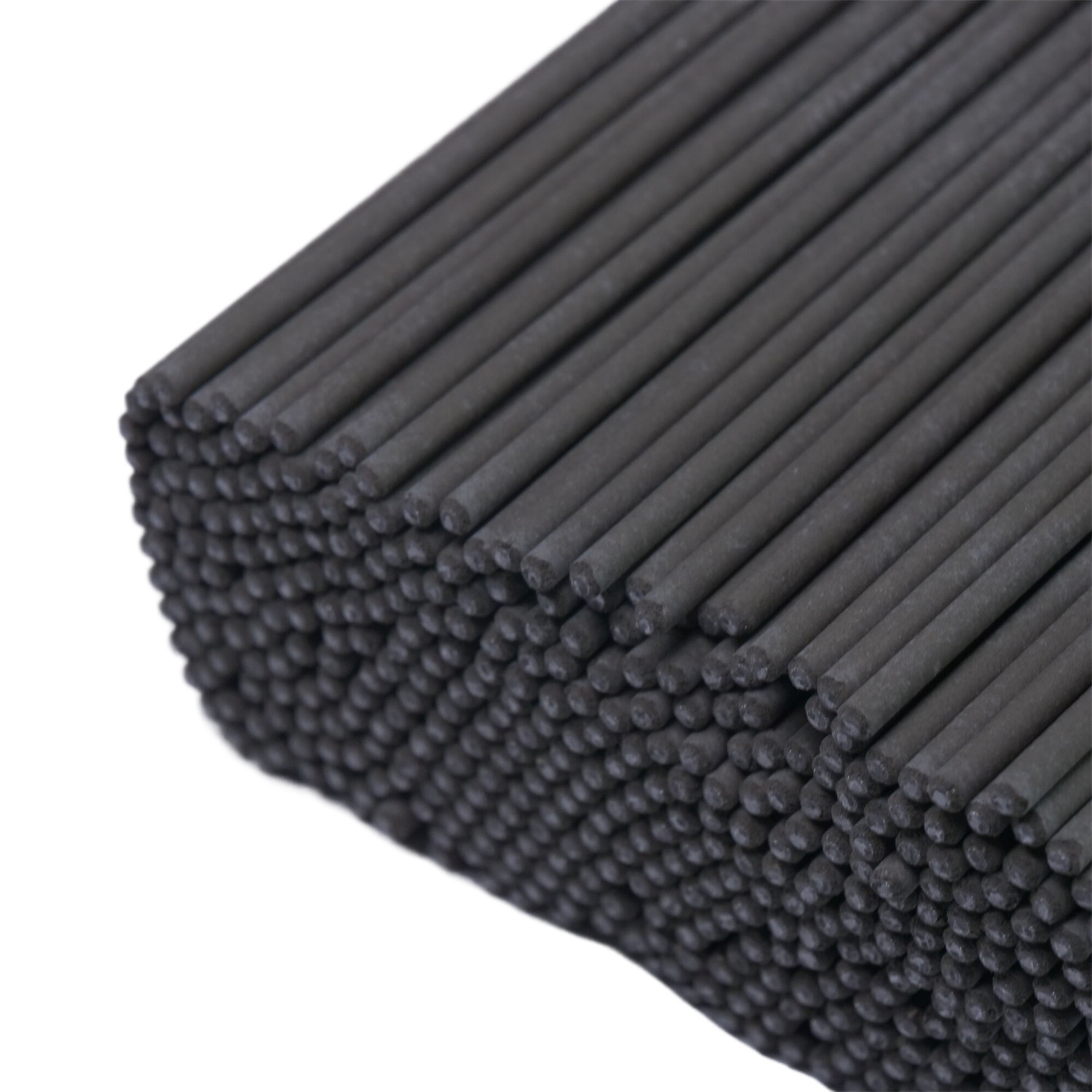

ENiFe-Cl ：GB/T 10044 EZNiFe-1
AWS ENiFe-CI
JIS DFCNiFe
Peculiarity：THZ408 is a strong reduction of cast iron electrodes with a nickel-iron core and graphite coating. It can be used in both AC and DC, has a stable arc, and is easy to operate. The electrode has the characteristics of high strength, good plasticity and low coefficient of linear expansion. The resistance of the c frame for gray cast iron is like THZ308, while the resistance of the c frame for ductile cast iron is more than THZ308. It also has a good effect on cast iron with a higher phosphorus (0.2% P), and it has slightly lower cutting properties than THZ308 and THZ508. THZ408 is used for welding of gray cast iron and ductile cast iron in w room.
Usages:Suitable for high-strength gray cast iron and ductile cast iron, such as cylinders, engine blocks, gear boxes, etc.
Note:
1. Before welding, the electrode should be baked at 150 ± 10℃ for 1 hour before use.
2. Use as little current as possible for welding.
3. The stress in the welding patch can be eliminated by hammering the weld to avoid cracks.
Product description：
Chemical composition of deposited metal (mass fraction): %
Welding reference current: (AC, DC+)
